Atmospheric Turbulence

Eddy dissipation rate

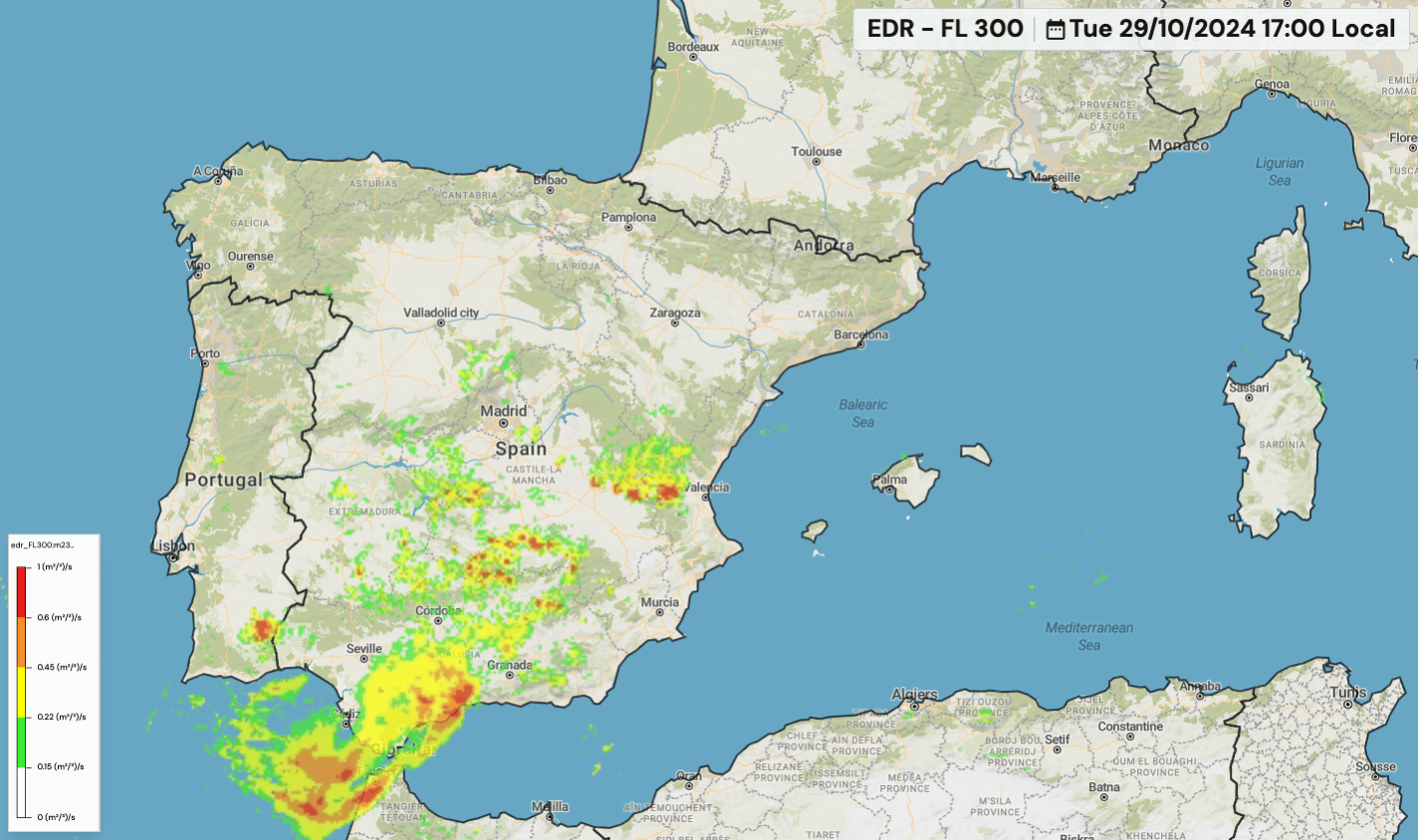

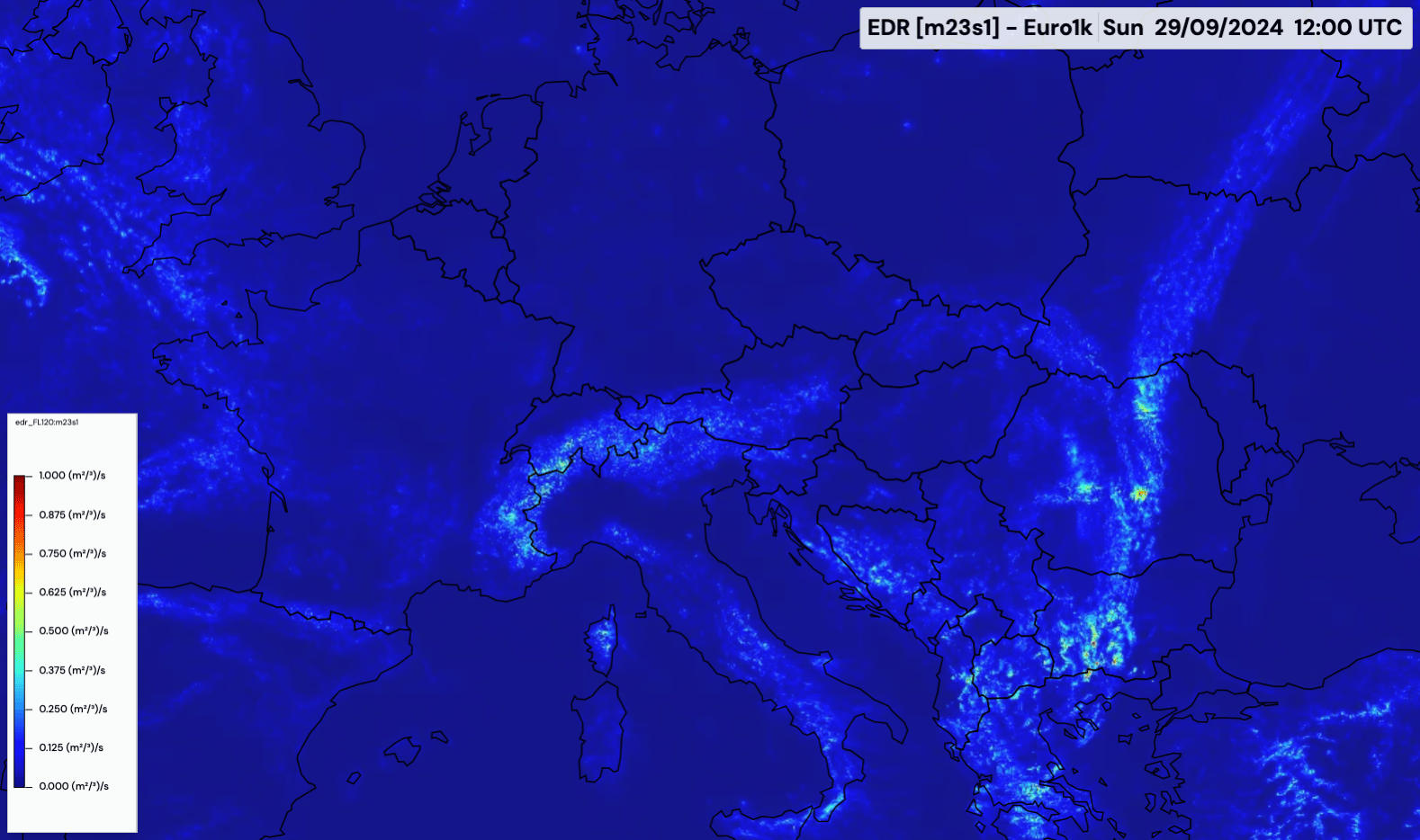

The eddy dissipation rate (EDR) is the standard measure defined by the International Civil Aviation Organization (ICAO) for measuring the intensity of atmospheric turbulence in aviation. EDR values range from 0 (no turbulence) to 1 (extreme turbulence). The parameter is available globally. The 1k models (EURO1k and US1k) provide higher spatial detail and are updated hourly, compared to the global mix, which is updated every six hours.

edr_<level>:m23s1

Available pressure levels (global): 1000hPa, 975hPa, 950hPa, 925hPa, 900hPa, 875hPa, 850hPa, 825hPa, 800hPa, 775hPa, 750hPa, 700hPa, 650hPa, 600hPa, 550hPa, 500hPa,450hPa, 400hPa, 350hPa, 300hPa, 250hPa, 200hPa, 150hPa, 100hPa, 50hPa

Available flight levels (global): FL10 - FL500 (continuously)

Examples:

Richardson Number

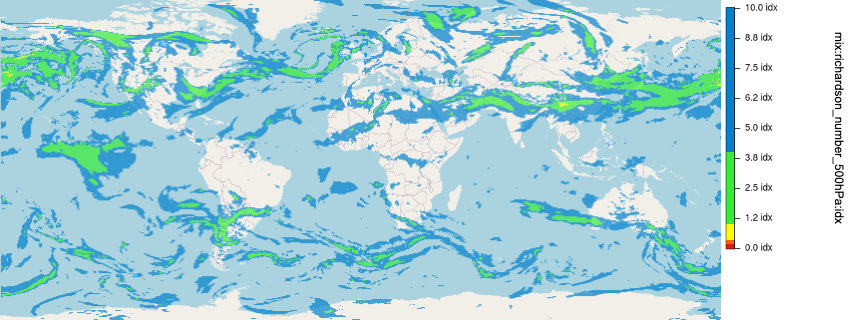

The Richardson number is the ratio of buoyancy and flow shear terms. It is expressed by a dimensionless number between 0 and 10. In aviation the Richardson Number can be used to assess atmospheric turbulence. This is also referred to as Clear Air Turbulence (CAT). Values below unity indicate significant turbulence.

richardson_number_<level>:idx

Available levels: 100hPa, 300hPa, 500hPa

Examples:

Ellrod Index

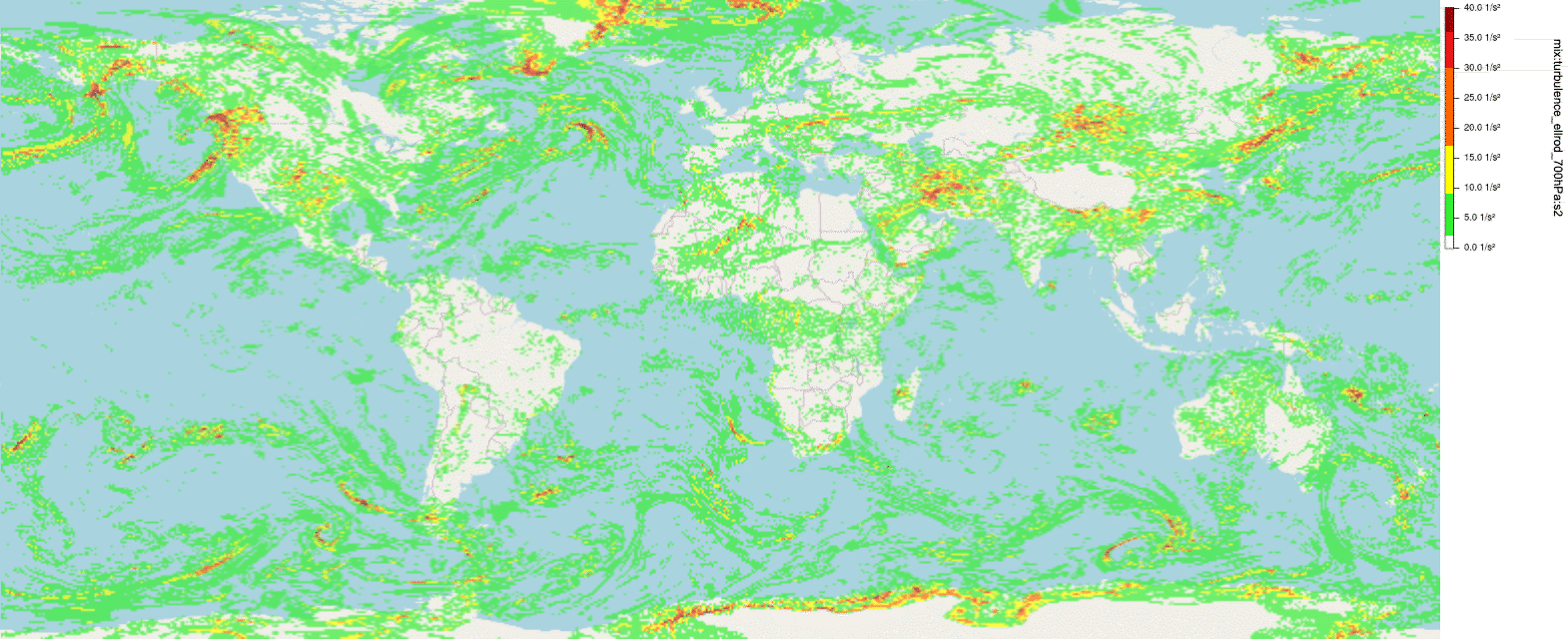

The Ellrod Index is designed to detect regions of Clear-Air-Turbulence (CAT) in the atmosphere. It is computed based on horizontal deformation of air parcels and vertical wind shear. The unit is s-2.

  • Especially suitable to detect turbulence near the jet stream; at upper level troughs and ridges, and the exit region of a jet
  • Does NOT account for low level turbulence due to thunderstorms, mountain ranges, etc.
RangeMeaning
0-2smooth conditions
2-9light turbulence
9-20moderate turbulence
20-36severe turbulence
> 36extreme turbulence
turbulence_ellrod_<level>:s2

Available levels (global): 975hPa, 950hPa, 925hPa, 900hPa, 875hPa, 850hPa, 825hPa, 800hPa, 775hPa, 750hPa, 700hPa, 650hPa, 600hPa, 550hPa, 500hPa, 450hPa, 400hPa, 350hPa, 300hPa, 250hPa, 200hPa, 150hPa, 100hPa, 70hPa, 50hPa, 10hPa
Available flight levels (global): FL20 - FL900 (continuously)

Examples:

Interval Values of Ellrod Index

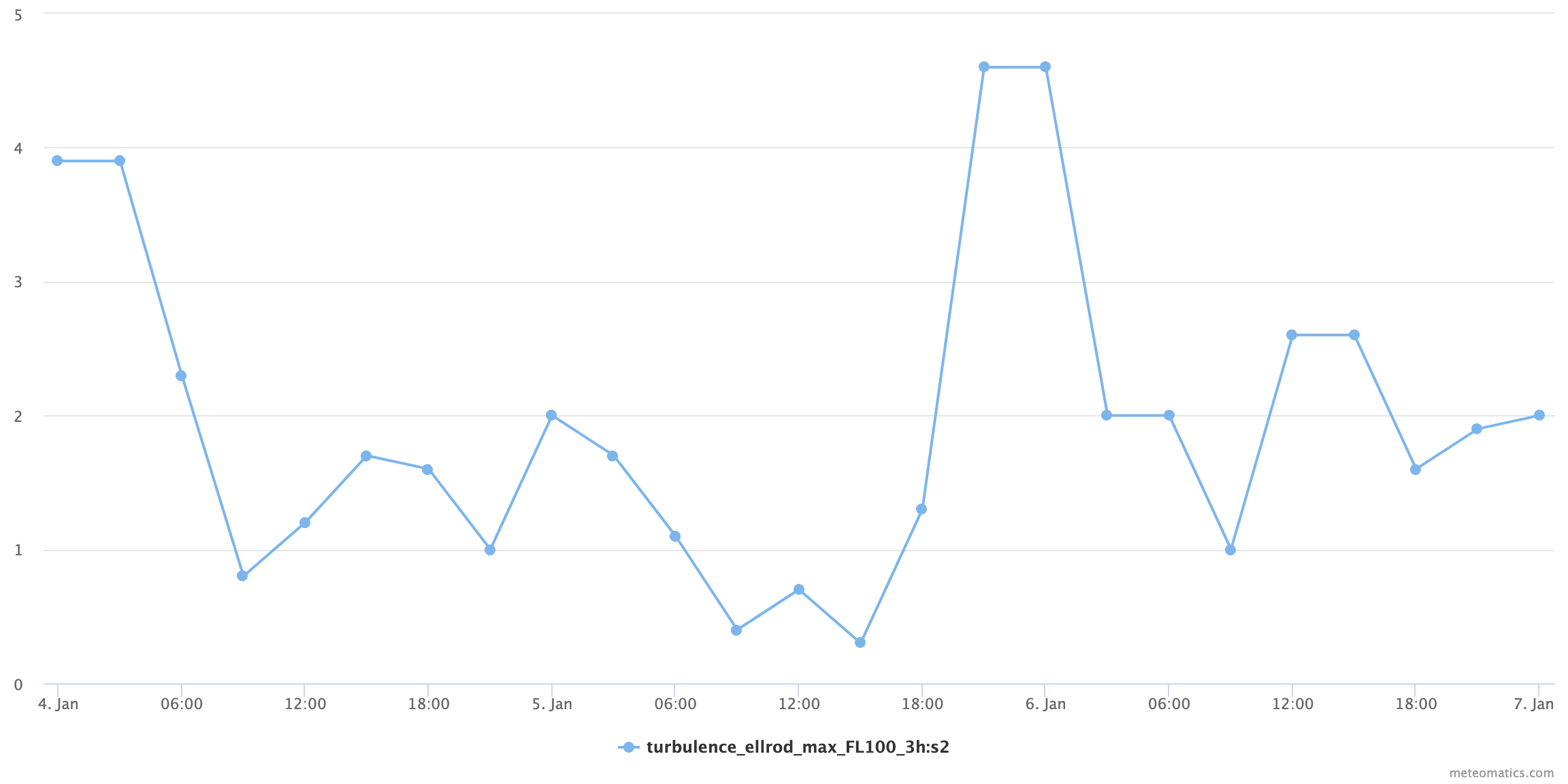

Gives the mean, maximum or minimum ellrod index at the indicated flight level over the indicated duration.

turbulence_ellrod_<measure>_<level>_<interval>:s2

Available flight levels: FL20 - FL900 (continuously)

Available measures: mean, min, max

Available intervals: 1h, 3h, 6h, 12h, 24h

Examples

Turbulence CAPE Index

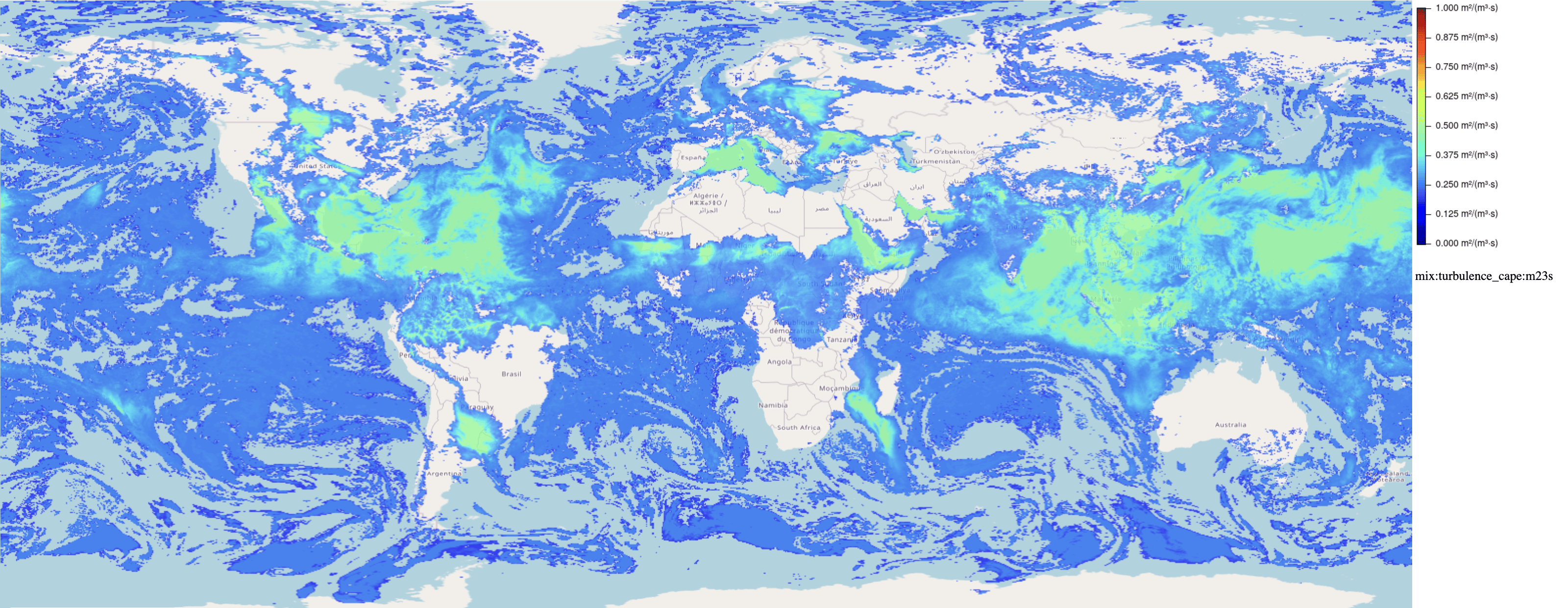

Turbulence index incorporating CAPE. The index is computed for the total atmospheric column and not for single layers. This index allows for checking if turbulence is present. The values range from 0 (no turbulence expected) to 1 (turbulence expected)

turbulence_cape:m23s

Examples:
