Wave Direction Parameters

Mean Wave Direction | Mean Direction Wind Waves | Mean Direction Total Swell | Mean Wave Direction First Swell | Mean Wave Direction Second Swell | Mean Wave Direction Third Swell |

Mean Wave Direction

Spectral mean direction in degrees over all frequencies and directions of the two-dimensional wave spectrum.
Please note that we are using the meteorological convention to define directions (Read more here).

mean_wave_direction:d

Examples

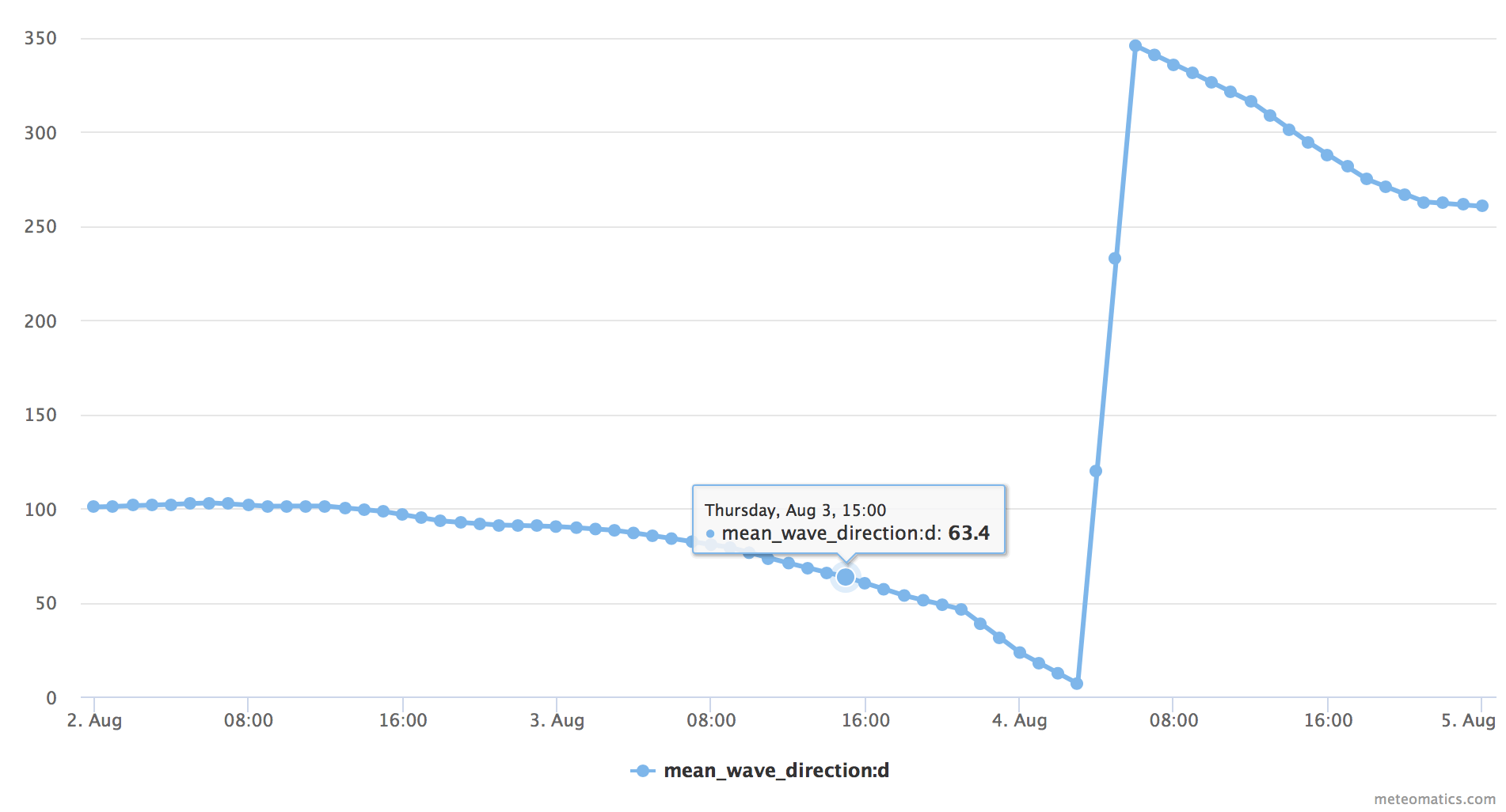

• Create a time series of the mean wave direction. The queried location lies to the south of Nagasaki in the Philippine Sea.https://api.meteomatics.com/2024-04-19T00:00:00ZP3D:PT1H/mean_wave_direction:d/27.852903,130.116770/html

• Create a time series of the mean wave direction. The queried location lies to the south of Nagasaki in the Philippine Sea.https://api.meteomatics.com/2024-04-19T00:00:00ZPT12H:PT1H/max_individual_wave_height:m/27.852903,130.116770/json

  {"version":"3.0","user":"api-test","dateGenerated":"2018-02-14T16:32:30Z","status":"OK","data":
  [{"parameter":"max_individual_wave_height:m","coordinates":[{"lat":27.8529,"lon":130.117,"dates":
  [{"date":"2017-08-02T00:00:00Z","value":4.8},{"date":"2017-08-02T01:00:00Z","value":4.8},
  {"date":"2017-08-02T02:00:00Z","value":4.9},{"date":"2017-08-02T03:00:00Z","value":4.9},
  {"date":"2017-08-02T04:00:00Z","value":5},{"date":"2017-08-02T05:00:00Z","value":5},
  {"date":"2017-08-02T06:00:00Z","value":5},{"date":"2017-08-02T07:00:00Z","value":5.1},
  {"date":"2017-08-02T08:00:00Z","value":5.1},{"date":"2017-08-02T09:00:00Z","value":5.2},
  {"date":"2017-08-02T10:00:00Z","value":5.2},{"date":"2017-08-02T11:00:00Z","value":5.2},
  {"date":"2017-08-02T12:00:00Z","value":5.3}]}]}]}

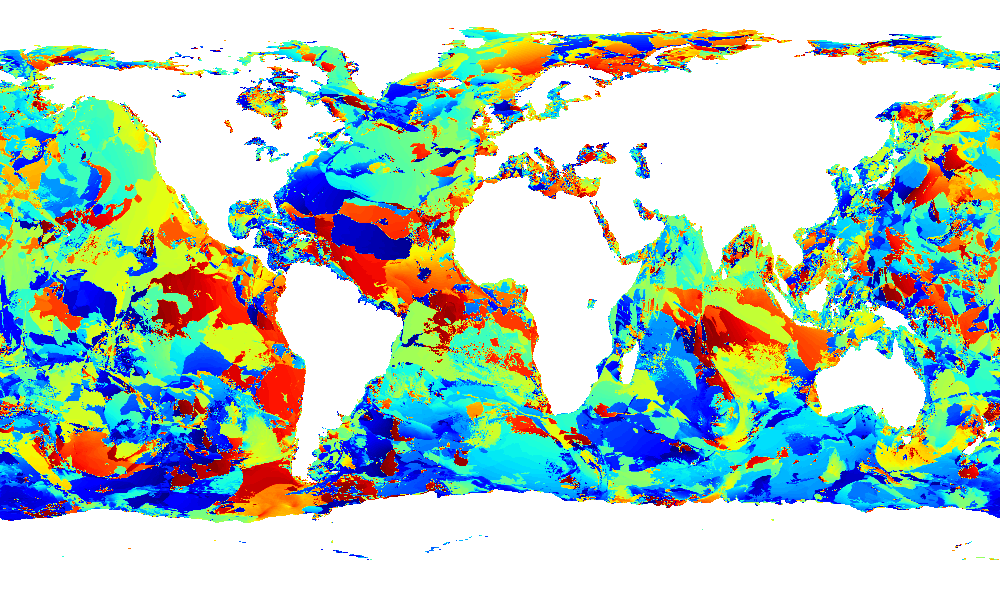

• https://api.meteomatics.com/2024-04-19T00:00:00Z/mean_wave_direction:d/90,-180_-90,180:1000x600/html

Mean Direction Wind Waves

Spectral mean direction over all frequencies and direction of the wind waves spectrum.
The wind waves spectrum is obtained by only considering the components of the two-dimensional wave spectrum that are still under the influence of the local wind.
Please note that we are using the meteorological convention to define directions (Read more here).

mean_direction_wind_waves:d

Examples

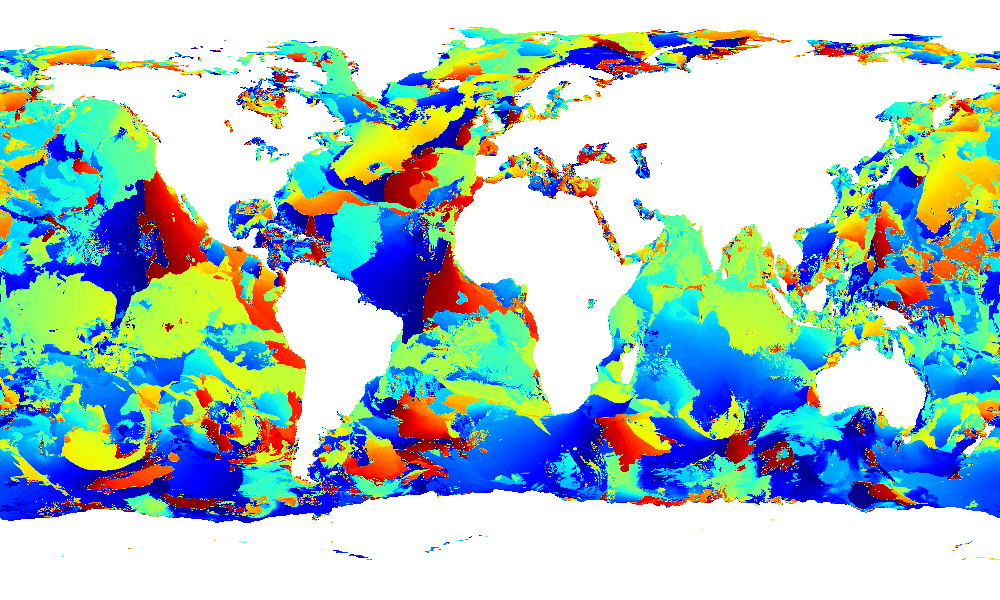

• https://api.meteomatics.com/2024-04-19T00:00:00Z/mean_direction_wind_waves:d/90,-180_-90,180:1000x600/html
• Obtain the values directly in csv format.https://api.meteomatics.com/2024-04-19T00:00:00ZP1D:PT2H/mean_direction_wind_waves:d/27.852903,130.116770/csv

  validdate;mean_direction_wind_waves:d
  2017-08-25T00:00:00Z;193.3
  2017-08-25T02:00:00Z;200.5
  2017-08-25T04:00:00Z;202
  2017-08-25T06:00:00Z;197.9
  2017-08-25T08:00:00Z;183.3
  2017-08-25T10:00:00Z;171.9
  2017-08-25T12:00:00Z;163.6
  2017-08-25T14:00:00Z;170.5
  2017-08-25T16:00:00Z;176.2
  2017-08-25T18:00:00Z;180.7
  2017-08-25T20:00:00Z;183.5
  2017-08-25T22:00:00Z;204.1
  2017-08-26T00:00:00Z;242.2

Mean Direction Total Swell

Spectral mean direction in degrees over all frequencies and directions of the total swell spectrum.
The total swell spectrum is obtained by only considering the components of the two-dimensional wave spectrum that are not under the influence of the local wind.
Please note that we are using the meteorological convention to define directions (Read more here).

mean_direction_total_swell:d

Examples

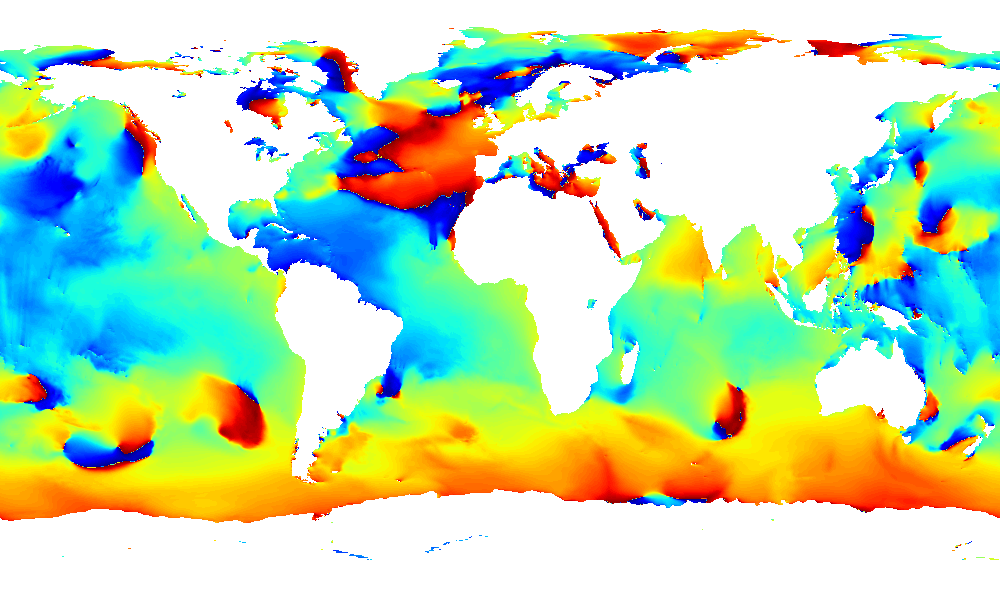

• https://api.meteomatics.com/2024-04-19T00:00:00Z/mean_direction_total_swell:d/90,-180_-90,180:1000x600/html

Mean Wave Direction First Swell

Spectral mean wave direction computed using the first-most energetic partition of the swell spectrum The swell spectrum is obtained by only considering the components of the two-dimensional wave spectrum that are not under the influence of the local wind.
Please note that we are using the meteorological convention to define directions (Read more here).

mean_wave_direction_first_swell:d

Examples

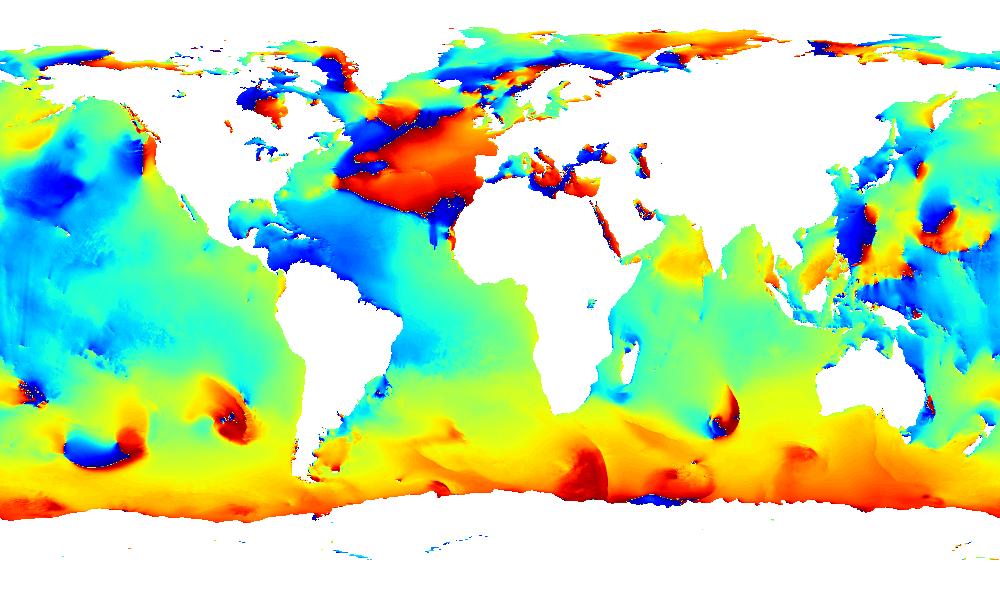

• https://api.meteomatics.com/2024-04-19T00:00:00Z/mean_wave_direction_first_swell:d/90,-180_-90,180:1000x600/html

Mean Wave Direction Second Swell

Spectral mean wave direction computed using the second-most energetic partition of the swell spectrum. The swell spectrum is obtained by only considering the components of the two-dimensional wave spectrum that are not under the influence of the local wind.
Please note that we are using the meteorological convention to define directions (Read more here).

mean_wave_direction_second_swell:d

Examples

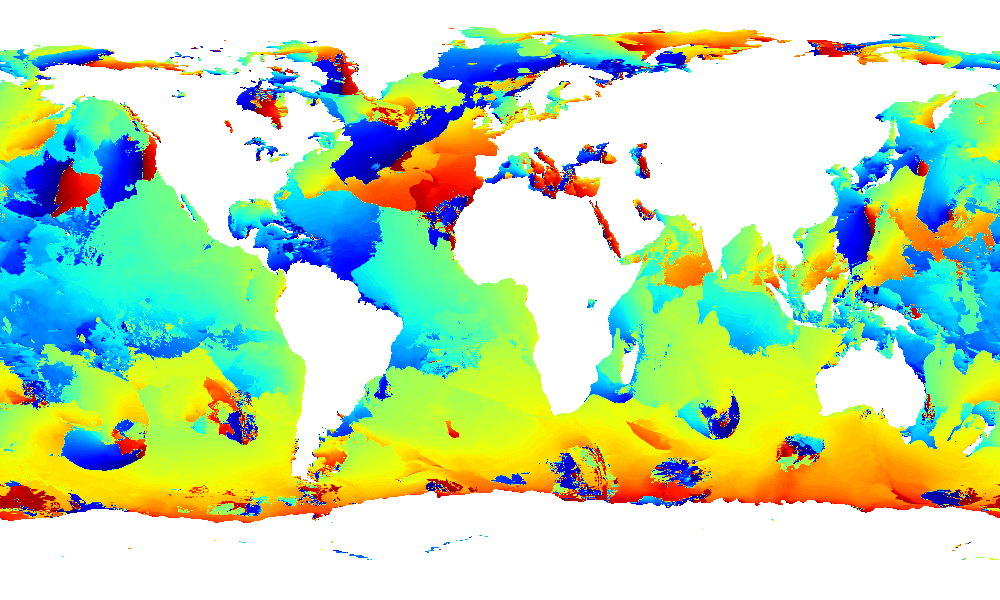

• https://api.meteomatics.com/2024-04-19T00:00:00Z/mean_wave_direction_second_swell:d/90,-180_-90,180:1000x600/html

Mean Wave Direction Third Swell

Spectral mean wave direction computed using the third-most energetic partition of the swell spectrum. The swell spectrum is obtained by only considering the components of the two-dimensional wave spectrum that are not under the influence of the local wind.
Please note that we are using the meteorological convention to define directions (Read more here).

mean_wave_direction_third_swell:d

Examples

• https://api.meteomatics.com/2024-04-19T00:00:00Z/mean_wave_direction_third_swell:d/90,-180_-90,180:1000x600/html
